Carbon Dioxide (CO2) fire extinguishers are suitable for use on class B and electrical fires. CO2 fire extinguishers are primarily for use on fires of electrical origin. Being non-toxic and leaving no residue, CO2 will not harm machinery or electrical equipment.
Chemical Manufacturing Plant, Oil Ring, Rail Yards, Warehouses, Construction sites, Parking garages, Airport, Electrical substation and Large laboratories.
| Specifications | 2KG | 5KG | 2KG | 5KG |
|---|---|---|---|---|
| Product Code | K2A-25P | K5A-25P | K2B-25E | K5B-25E |
| Apragaz EN3 Approval No. | EN3-21/486 | EN3-21/484 | EN3-21/485 | EN3-21/483 |
| Fire Fating | 34B | 70B | 34B | 70B |
| Medium | CO2 | CO2 | CO2 | CO2 |
| Diameter | 104mm | 136mm | 104mm | 136mm |
| Height of Bottle | 480mm | 655mm | 480mm | 655mm |
| Height of Extinguisher | 560mm | 740mm | 570mm | 745mm |
| Capacity | 3.00L | 7.50L | 3.00L | 7.50L |
| Weight | 6.50kg | 15.00kg | 6.50kg | 15.00kg |
| Discharge Time | ≥6S | ≥9S | ≥6S | ≥9S |
| Test Pressure | 250bar | 250bar | 250bar | 250bar |
| Working Pressure | 174bar | 174bar | 174bar | 174bar |
| Temperature Range | -30℃/+60℃ | -30℃/+60℃ | -30℃/+60℃ | -30℃/+60℃ |

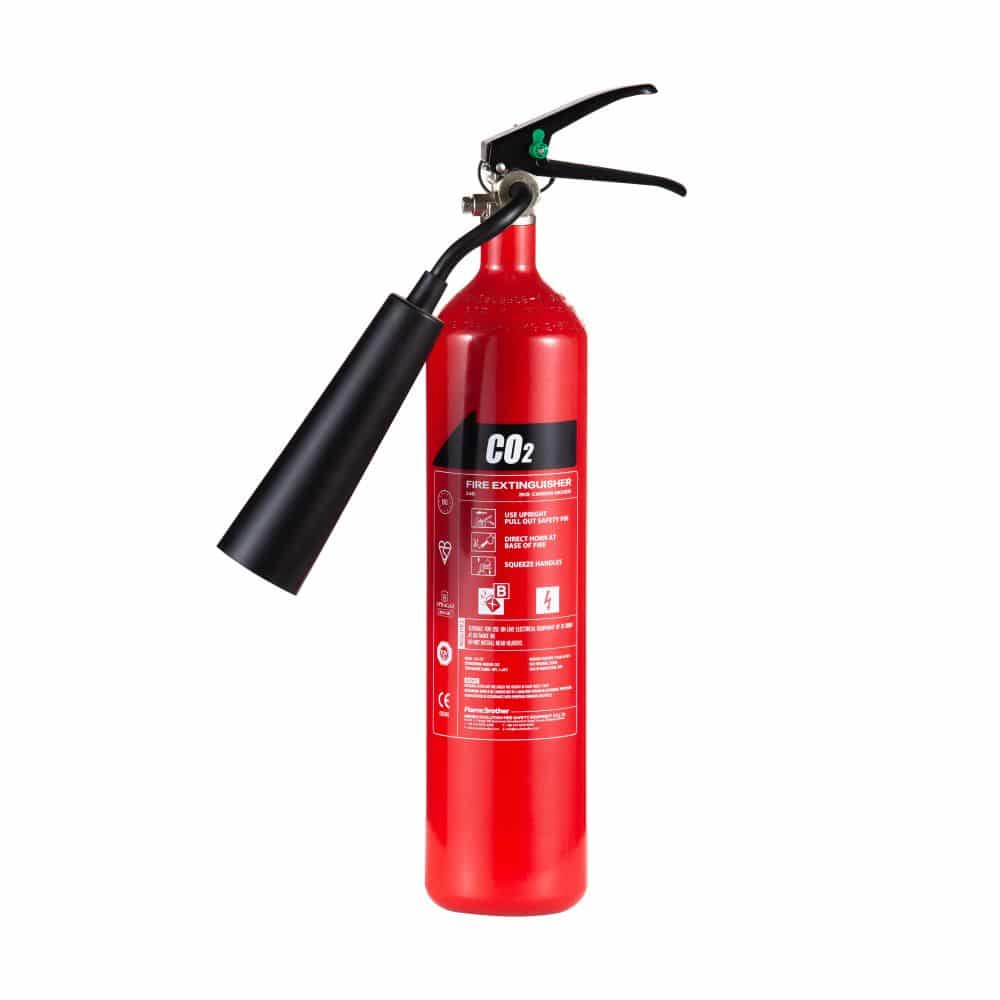

| Product Code | K2A-25P |
|---|---|
| Apragaz EN3 Approval No. | EN3-21/486 |
| Capacity | 3.00L |
| Fire Rating | 34B |
| Extinguishing Medium | CO2 |
| Working Pressure | 174bar |
| Temperature Range | -30℃/+60℃ |
| Cylinder Meterial | 34CrMo4 |
| Pressuring Gas | CO2 |
| Test Pressure | 250bar |
| Weight | 6.50kg |
| Discharge Time | ≥6S |
| Height of Extinguisher | 560mm |
| Diameter | 104mm |
| Height of Bottle | 480mm |
| By Cartons/20GP | 2700pcs |
|---|---|
| By Pallets/20GP | 2160pcs (20 Pallets) |

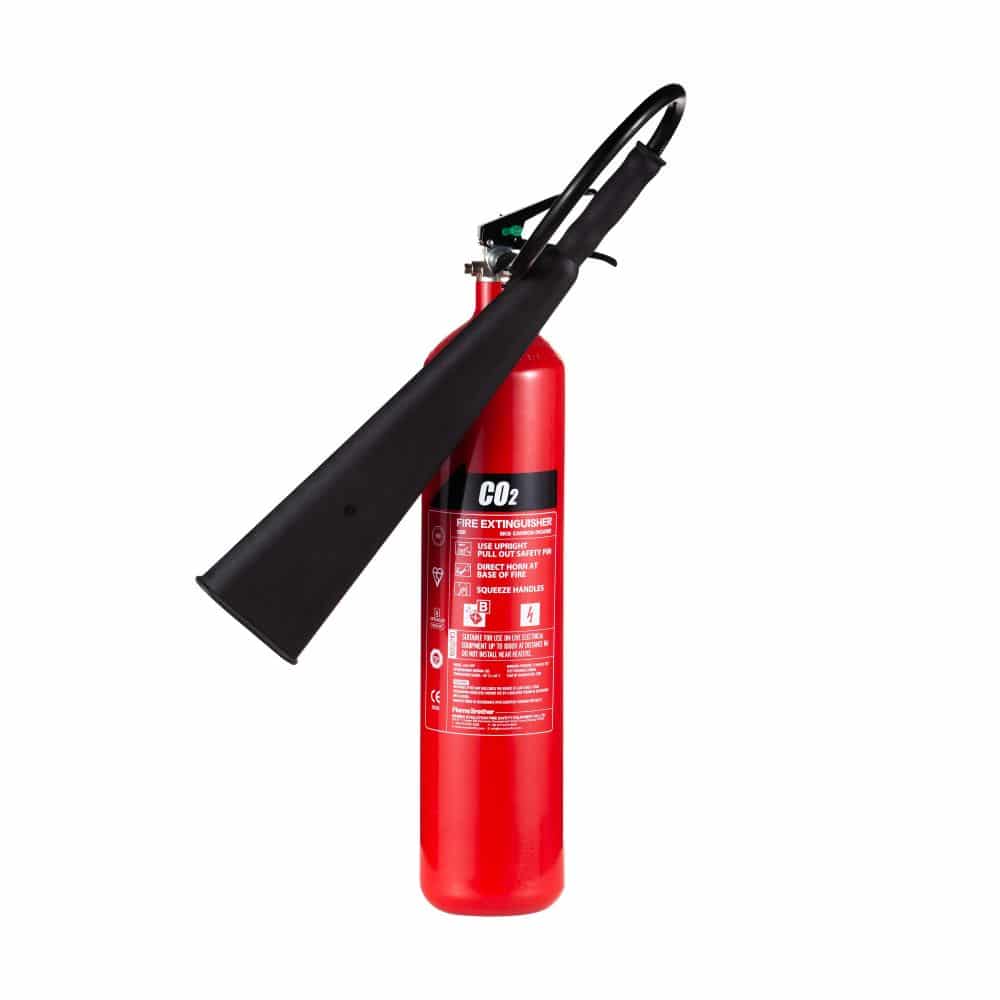

| Product Code | K5A-25P |
|---|---|
| Apragaz EN3 Approval No. | EN3-21/484 |
| Capacity | 7.50L |
| Fire Rating | 70B |
| Extinguishing Medium | CO2 |
| Working Pressure | 174bar |
| Temperature Range | -30℃/+60℃ |
| Cylinder Meterial | 34CrMo4 |
| Pressuring Gas | CO2 |
| Test Pressure | 250bar |
| Weight | 15.00kg |
| Discharge Time | ≥9S |
| Height of Extinguisher | 740mm |
| Diameter | 136mm |
| Height of Bottle | 655mm |
| By Cartons/20GP | 1200pcs |
|---|---|
| By Pallets/20GP | 760pcs (20 Pallets) |
| Product Code | K2B-25E |
|---|---|
| Apragaz EN3 Approval No. | EN3-21/485 |
| Capacity | 3.00L |
| Fire Rating | 34B |
| Extinguishing Medium | CO2 |
| Working Pressure | 174bar |
| Temperature Range | -30℃/+60℃ |
| Cylinder Meterial | 34CrMo4 |
| Pressuring Gas | CO2 |
| Test Pressure | 250bar |
| Weight | 6.50kg |
| Discharge Time | ≥6S |
| Height of Extinguisher | 570mm |
| Diameter | 104mm |
| Height of Bottle | 480mm |
| By Cartons/20GP | 2520pcs |
|---|---|
| By Pallets/20GP | 2160pcs (20 Pallets) |
| Product Code | K5B-25E |
|---|---|
| Apragaz EN3 Approval No. | EN3-21/483 |
| Capacity | 7.50L |
| Fire Rating | 70B |
| Extinguishing Medium | CO2 |
| Working Pressure | 174bar |
| Temperature Range | -30℃/+60℃ |
| Cylinder Meterial | 34CrMo4 |
| Pressuring Gas | CO2 |
| Test Pressure | 250bar |
| Weight | 15.00kg |
| Discharge Time | ≥9S |
| Height of Extinguisher | 745mm |
| Diameter | 136mm |
| Height of Bottle | 655mm |
| By Cartons/20GP | 1300pcs |
|---|---|
| By Pallets/20GP | 760pcs (20 Pallets) |
Need more information on CO2 Fire Extinguishers
EvolutionFire, established in 1997, is one of the most professional and reliable CO2 Fire Extinguishers manufacturers and suppliers in China. Most of our products are with CE, EN3, LPCB, EN671, UL and MED certificates. Please rest assured that get the CO2 Fire Extinguishers made in China from our factory. One-stop service and warranty policy are offered.
